For homeowners, they provide reassurance that the design has been checked against the regulations and that the builder has clear, accurate information to work from. For builders, they reduce uncertainty and help with accurate pricing, reducing the risk of unexpected costs later in the project. These drawings are typically completed before tendering or construction begins, ensuring everyone is working from the same technical information, so for Building Control, they demonstrate compliance before work begins.
Below, we break down the process step by step, using a real project case study to show how these drawings support compliance, pricing and on-site clarity.
Project Case Study: Brookmans Avenue
Our Brookmans Avenue project is a good example of how Building Regulations drawings support both compliance and construction on a more complex residential scheme.
The works included a large ground-floor rear extension, a partial first-floor rear extension and a full re-roof to create a new second floor. Internally, the layout was reconfigured throughout, and the external façade was fully upgraded with new render, natural stone detailing and a feature portico to redefine the entrance.
One of the key challenges was achieving a 13m x 6.5m open-plan living, kitchen and dining space without any visible internal columns or downstand beams. The Building Regulations drawings played a central role in coordinating the structural design needed to achieve this.
The addition of a new second floor also required a clear fire escape strategy. The drawings set out the protected stairwell arrangement, fire-resistant construction, escape routes and alarm systems needed to ensure safe egress from all levels of the home.
Externally, the façade enhancements — including natural stone surrounds and a natural stone portico — required detailed junction drawings to ensure thermal performance and weather protection met current standards.

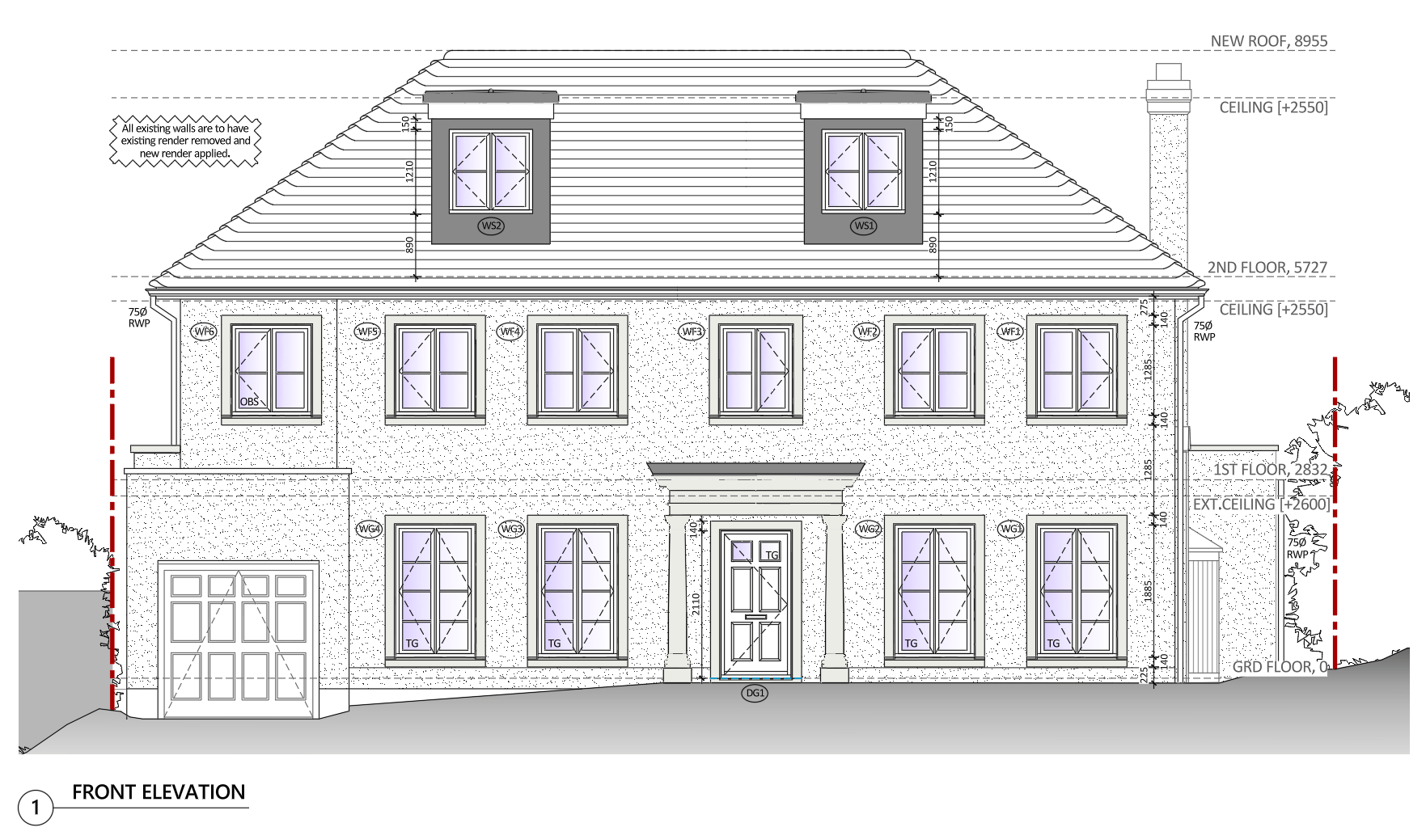

IMAGE 2: BR Front Elevation
How Are Building Regulations Drawings Produced: Step by Step
Using our Brookmans Avenue project as an example
Step 1: Reviewing the Initial Design
We begin by reviewing the approved planning design to identify any areas requiring adjustment to meet technical regulatory standards, and specific elements that require in-depth technical drawn details to ensure compliance.
For Brookmans Avenue, this included the large rear space, the new second-floor layout, and the façade enhancements. Each of these had implications for areas such as structure, thermal performance and fire safety.
Step 2: Developing the Technical Drawings
With the design review complete, we move on to produce the detailed Building Regulations drawings with a clear plan of the information that needs to be created. These include fully developed floor plans and building sections, large-scale junction details and construction notes covering everything from ventilation and insulation to drainage and structural support. Particular attention is given to aspects that Building Control will need to review.
For Brookmans Avenue, this meant detailing the ground floor, external wall and roof build-ups and junctions, the second floor construction, and interfaces around the arched patio doors and stone surrounds, to ensure that energy efficiency, structural integrity and damp proofing are all dealt with properly.

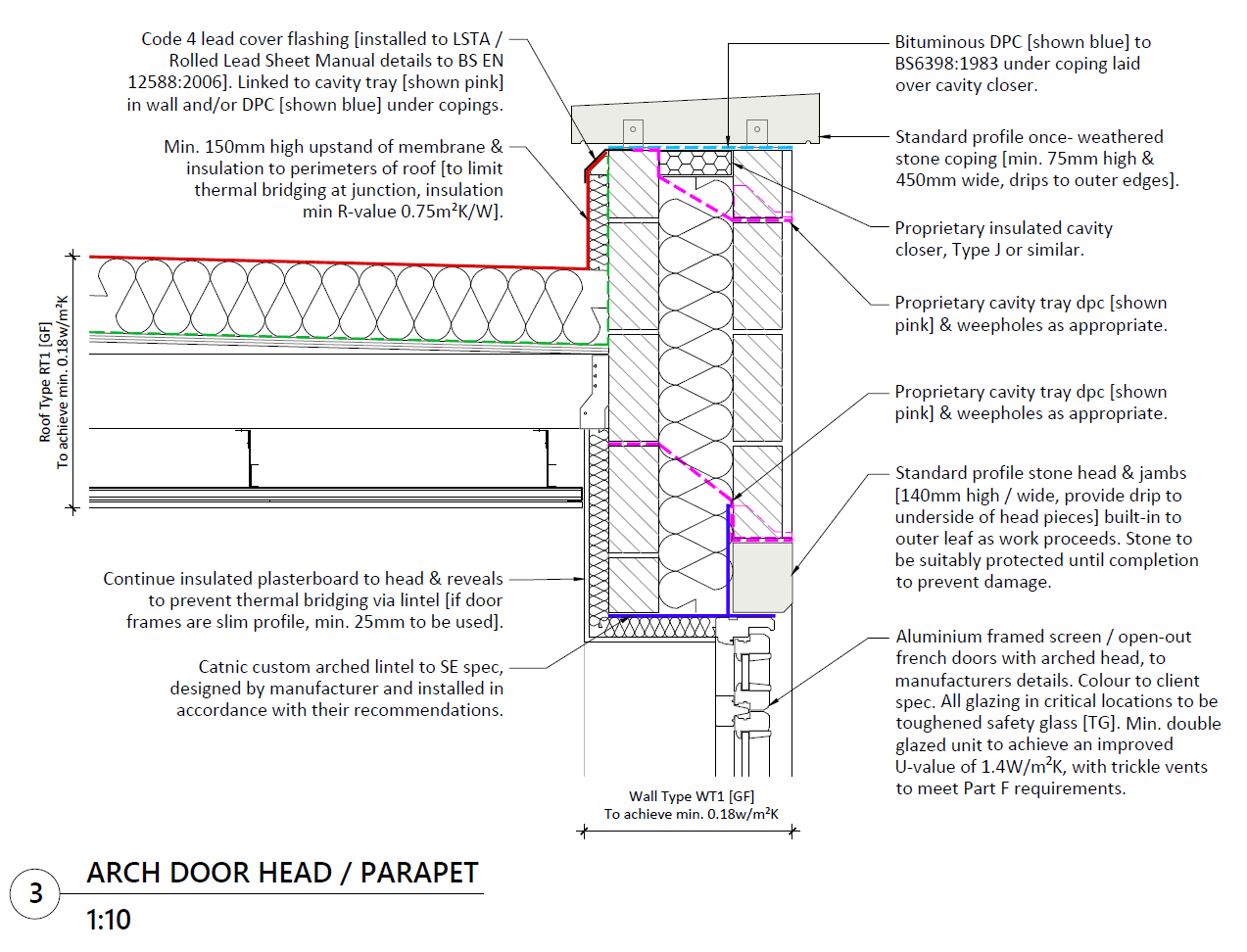

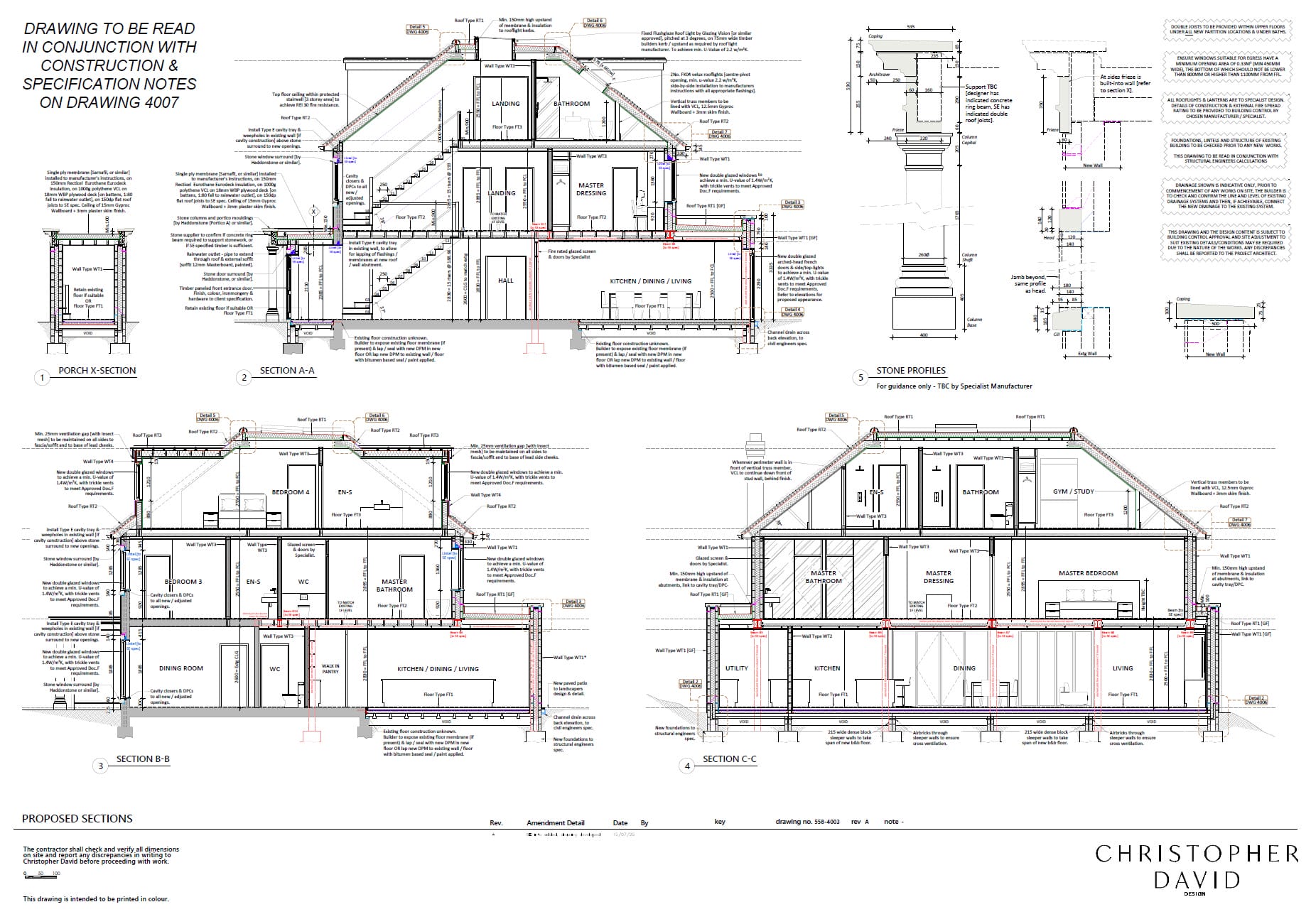

IMAGE 3 and 4: Building Sections and Door Head / Parapet detail
Step 3: Coordinating with Specialists
On any extension or renovation project, collaboration with other specialists is essential — most commonly when it comes to civil drainage or structural design.
For Brookmans Avenue, given the scale of the open-plan space, structural coordination was key. We worked closely with the structural engineer to integrate steelwork cleanly within the floor and roof zones, to ensure the room could be completely open, with no visible columns or downstand beams.
Step 4: Submitting to Building Control
Once the drawings and specialist inputs are aligned, we submit the full package to Building Control. This allows any queries to be resolved early, reducing the risk of delays once work begins.
For Brookmans Avenue, the Building Control Officer reviewed the drawings in respect of structural, thermal and fire safety (among many other aspects) and approved the scheme without the need for major revisions.
Step 5: Supporting the Builder on Site
As construction progresses, the Building Regulations drawings are used on site as a practical guide for the builder. They provide clarity on insulation levels, structural beams, internal drainage routes and the interfaces between new and existing elements, helping the build move forward smoothly and in line with the approved specification.
For Brookmans Avenue, the builder is already relying on the detailed plans, building-sections and large-scale junction details, to ensure that the extensions are built in accordance with the approved design.

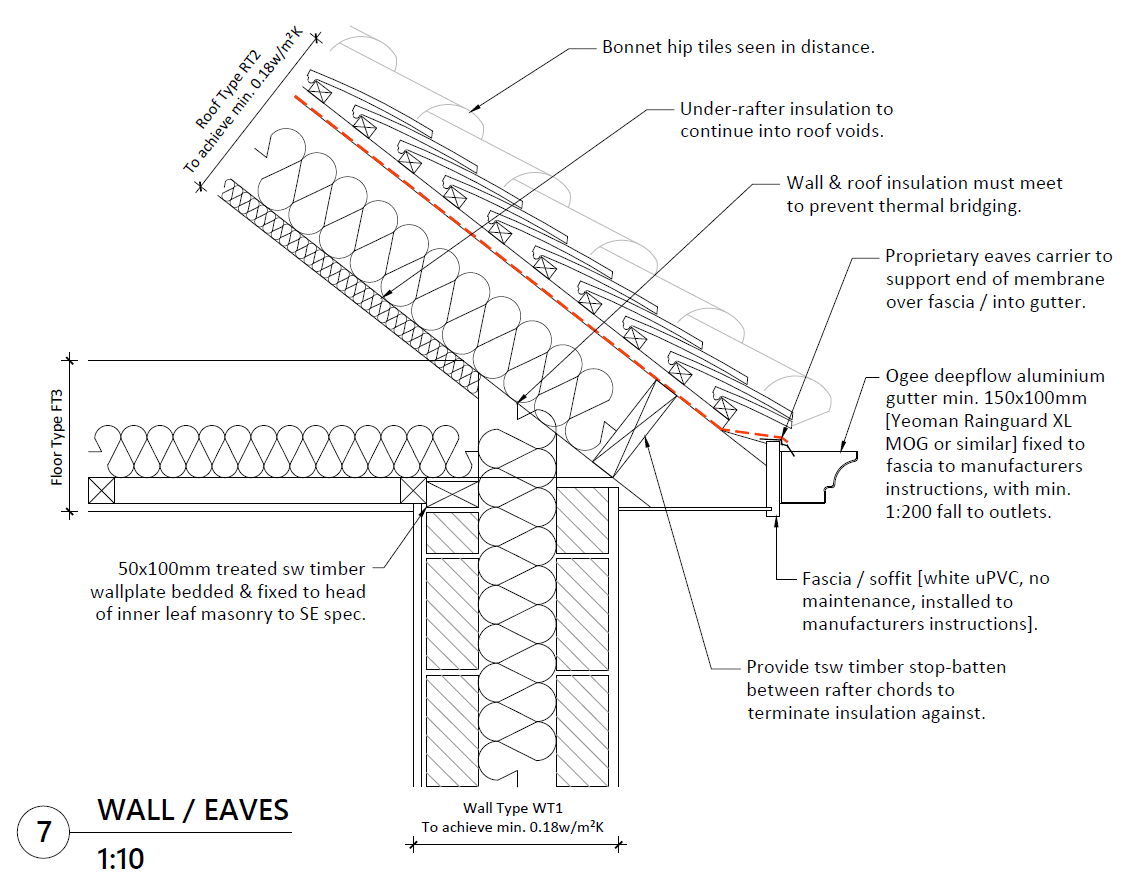

IMAGE 5: Wall / Roof Eaves Detail
